Description

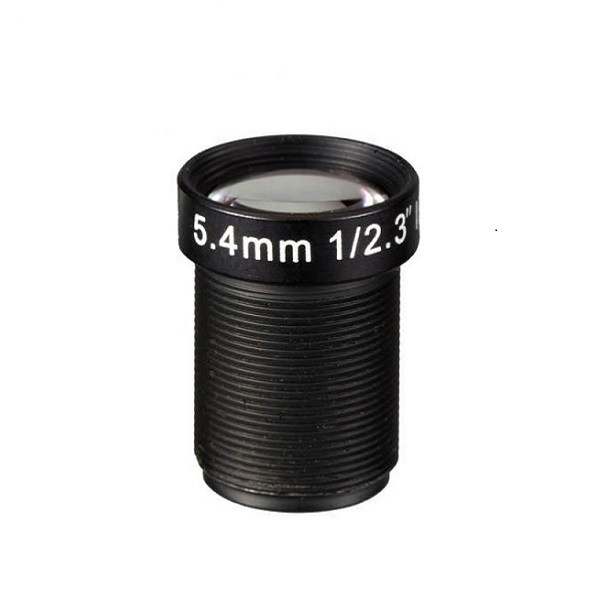

5.4mm 4K Low distortion 65degree1/2.3" format F2.8 M12 Lens
1. Focal Length: 5.4mm
2. Resolution: 10MP
3. Format: 1/2.3"
4. HFOV: 65 degree
5. IR Filter: IR650nm, IR850nm, IR940nm, Any kinds of filter can be customized
6. Mount: M12*0.5
7. Low distortion:<-1%
8. Using: HD Camera, IP Camera, Hunt Camera, Medical Instruments
1. Focal Length: 5.4mm
2. Resolution: 10MP
3. Format: 1/2.3"
4. HFOV: 65 degree
5. IR Filter: IR650nm, IR850nm, IR940nm, Any kinds of filter can be customized
6. Mount: M12*0.5
7. Low distortion:<-1%
8. Using: HD Camera, IP Camera, Hunt Camera, Medical Instruments
|
Model(型号) |
MTV-054BF123(10MP) |
|
|
Focal Length(焦距) |
5.4mm |
|
|
Resolution（分辨率） |
10 Megapixel |
|
|
Apeature（光圈） |
F2.8 |
|
|
Image Format（像面尺寸） |
1/2.3” |
|
|
Horizontal Field Angle (D*H*V)（视场角） |
65° |
|
|
Mount（接口） |
M12*0.5 Mount |
|
|
Operation（操作） |
Zoom（变焦） |
Fixed |
|
Focus（聚焦） |
Fixed |
|
|
Iris（光圈） |
Fixed |
|
|
Back Focal Length（光学后焦） |
6.89mm |
|
|
TTL（光学总长） |
25mm |
|
|
MOD（最小物距） |
0.3m |
|
|
IR Filter |
IR 650nm Fiter |
|
|
Distortion |
-2.7% |
|
|
Weight （重量） |
5g |
|
|
Working Environment （工作温度） |
-20℃~60℃ |
|
|
Dimension（尺寸） |
Φ13.5x18.74mm |
|
