Description

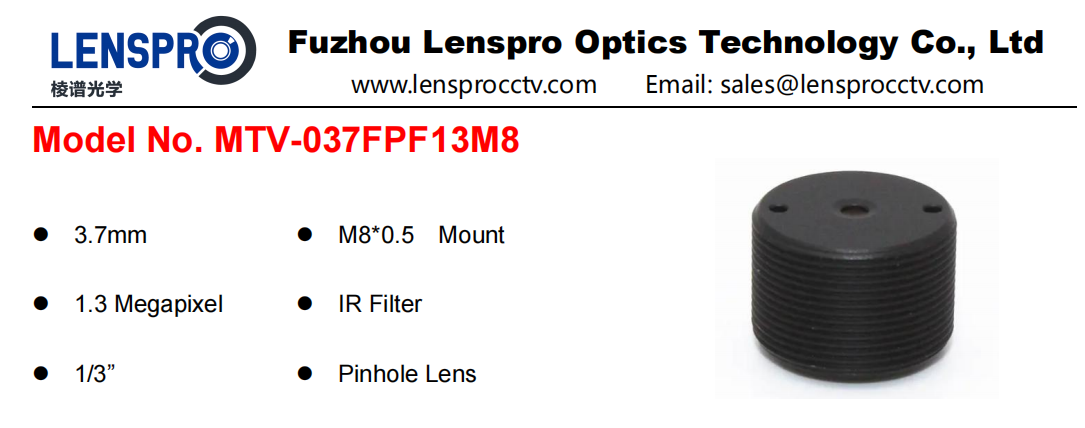

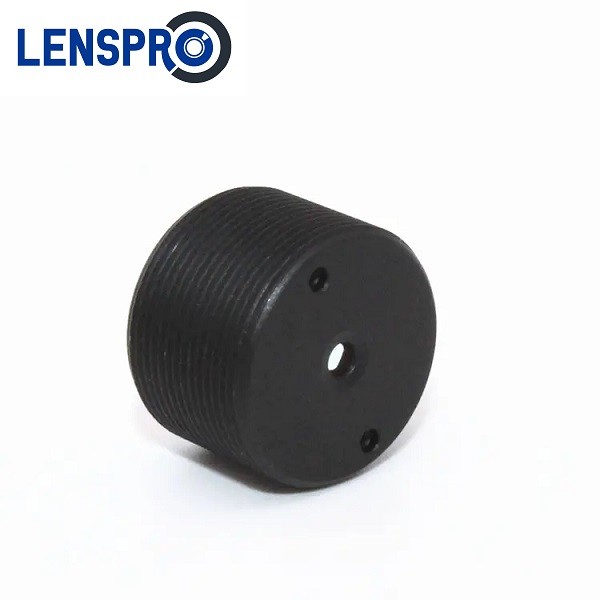

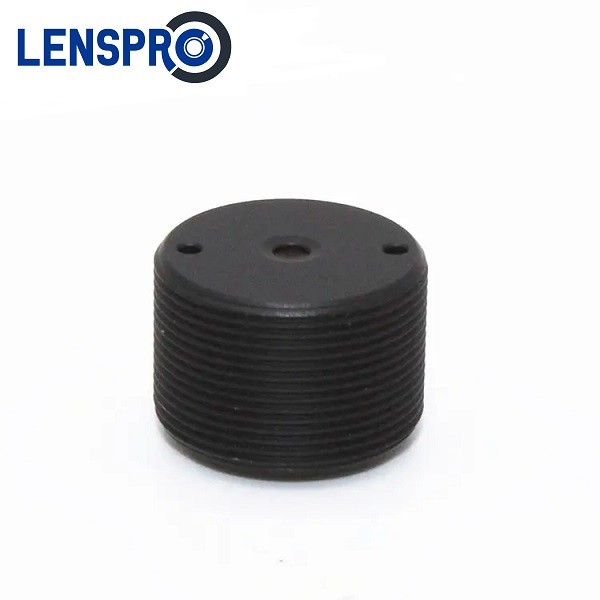

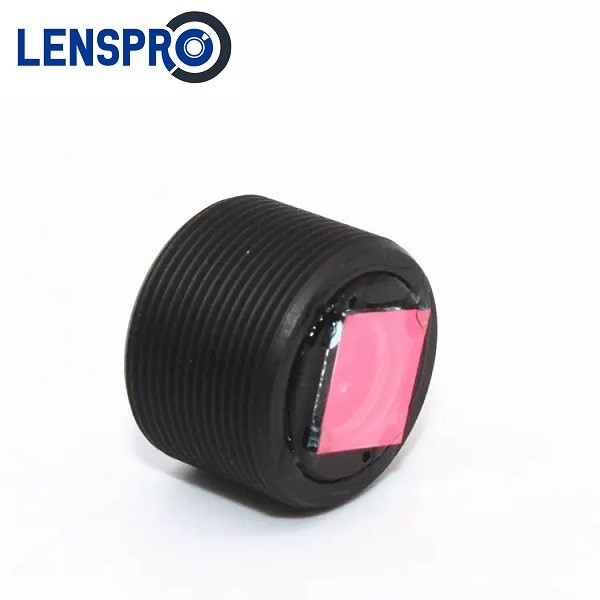

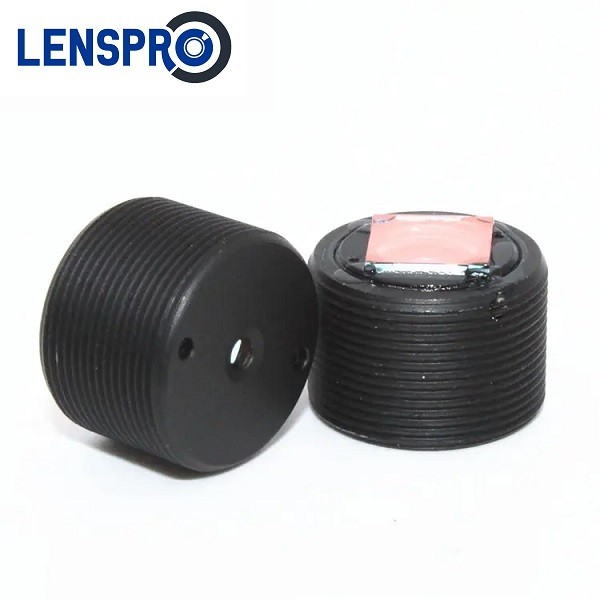

3.7mm M8 Mount Flat pinhole MINI Lens with IR Cut filter
1. Focal Length:3.7mm
2. Resolution: 1MP
3. Format: 1/3"
4. IR Cut Filter: 650nm filter
5. Mount: M8*0.5
Model(型号) |
MTV-037FPF13M8 |
|
Focal Length(焦距) |
3.7mm |
|
Resolution(分辨率) |
1.3 Megapixel |
|
Apeature(光圈) |
F2.0 |
|
Image Format(像面尺寸) |
1/3” |
|
Field of View(视场角) |
92° |
|
Mount(接口) |
M8*0.5 |
|
Operation(操作) |
Zoom(变焦) |
Fixed |
Focus(聚焦) |
Fixed |
|
Iris(光圈) |
Fixed |
|
Back Focal Length(光学后焦) |
4mm |
|
TTL(光学总长) |
10.8mm |
|
MOD(最小物距) |
≥0.3m |
|
IR Filter |
650nm IR Filter |
|
Weight (重量) |
5g |
|
Working Environment (工作温度) |
-20℃~60℃ |
|
Dimension(尺寸) |
Φ8(D)*7(L) |
