Description

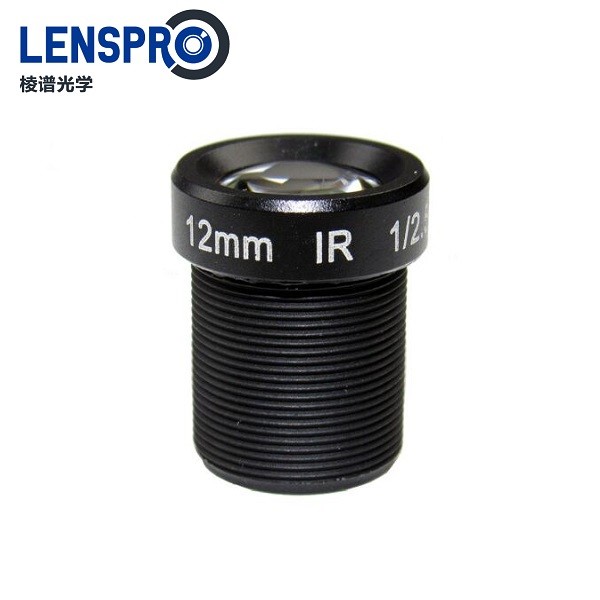

12mm 5MP M12 Board CCTV Lens
1. Focal Length: 12mm
2. Resolution: 5MP
3. Format: 1/2.5"
4. HFOV: 53.6degree
5. Mount: M12*0.5
6. IR Function: Yes

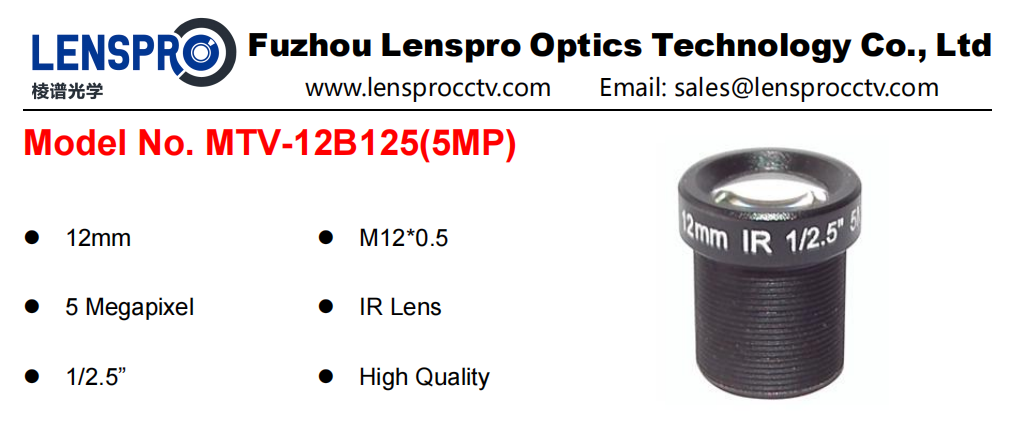

Model(型号) |
MTV-12B125(5MP) |
|
Focal Length(焦距) |
12mm |
|
Resolution(分辨率) |
5 Megapixel |
|
Apeature(光圈) |
F2.0 |
|
Image Format(像面尺寸) |
1/2.5” |
|
Horizontal Field Angle(水平视场角) |
28° |
|
Mount(接口) |
M12*0.5 |
|
Operation(操作) |
Zoom(变焦) |
Fixed |
Focus(聚焦) |
Fixed |
|
Iris(光圈) |
Fixed |
|
Back Focal Length(光学后焦) |
7.3mm |
|
TTL(光学总长) |
23.2mm |
|
MOD(最小物距) |
0.3m |
|
Yes |
||
Weight (重量) |
8g |
|
Working Environment (工作温度) |
-20℃~60℃ |
|
Dimension(尺寸) |
Φ14x16.7mm |
